PP / HDPE Raffia Woven Sack Bag Production Line
Heaven Extrusions offers complete, high-performance solutions for manufacturing PP/HDPE Raffia woven bags and tarpaulins, designed to deliver superior fabric strength, consistent quality, and high productivity. Our Raffia Woven Sack Bags Production Line are trusted worldwide for applications demanding durability, weather resistance, and cost efficiency.
Technical Specification for Raffia Tape Stretching Line
| Model | Screw Size (MM) | L/D Ratio | Die Width (MM) | Max. Melting Capacity (KG/Hr) | Max. Line Speed (MPM) |
|---|---|---|---|---|---|
| HETSL – 65/150 | 65 | 32:1 | 800 | 125 – 150 | 250 |
| HETSL – 75/200 | 75 | 32:1 | 900 | 170 – 200 | 300 |
| HETSL – 85/250 | 85 | 32:1 | 1100 | 225 – 250 | 350 |
| HETSL – 95/350 | 95 | 32:1 | 1300 | 315 – 350 | 380 |
Complete Production Solution
Heaven Extrusions provides an end-to-end, integrated production solution for PP / HDPE Raffia Woven Sack manufacturing. From raw material processing to finished bag conversion, every stage is engineered for high efficiency, durability, and consistent output quality.

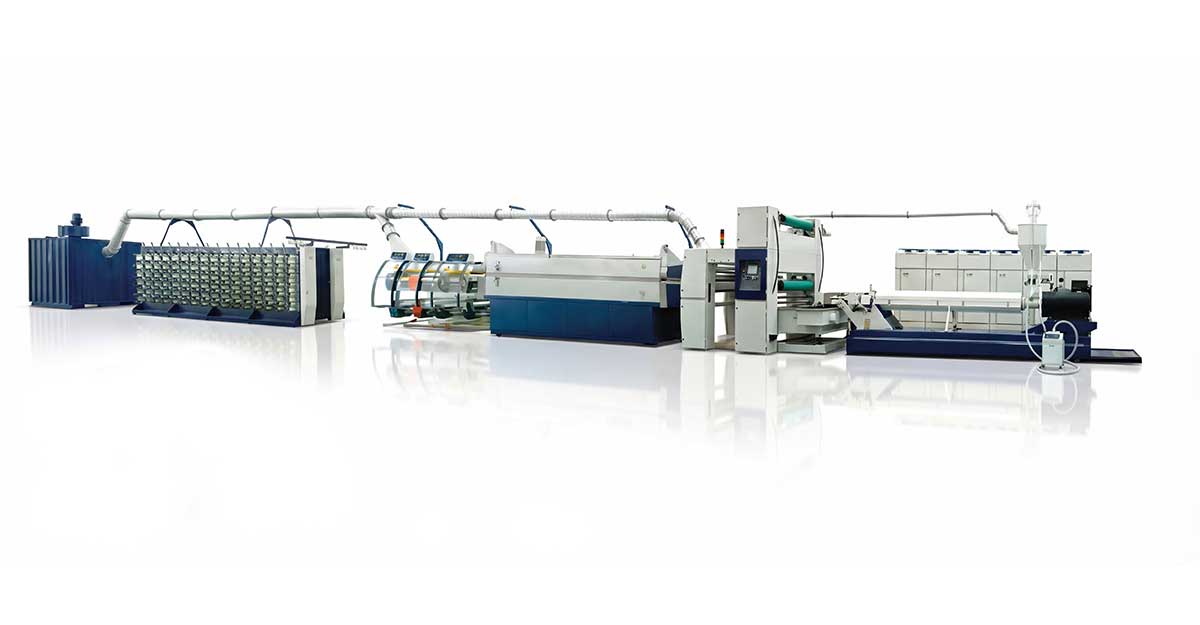

Raffia Tape Stretching Line
Premium-grade PP or HDPE granules are extruded into flat tapes using high-precision T-Die technology, followed by hot air oven stretching and annealing to achieve high tensile strength, uniform width, and consistent thickness.
Automatic Tape Winding System
Precision tape winding with magnetic or inverter-based winders ensuring smooth bobbin formation, uniform tension control, and trouble-free weaving operations.

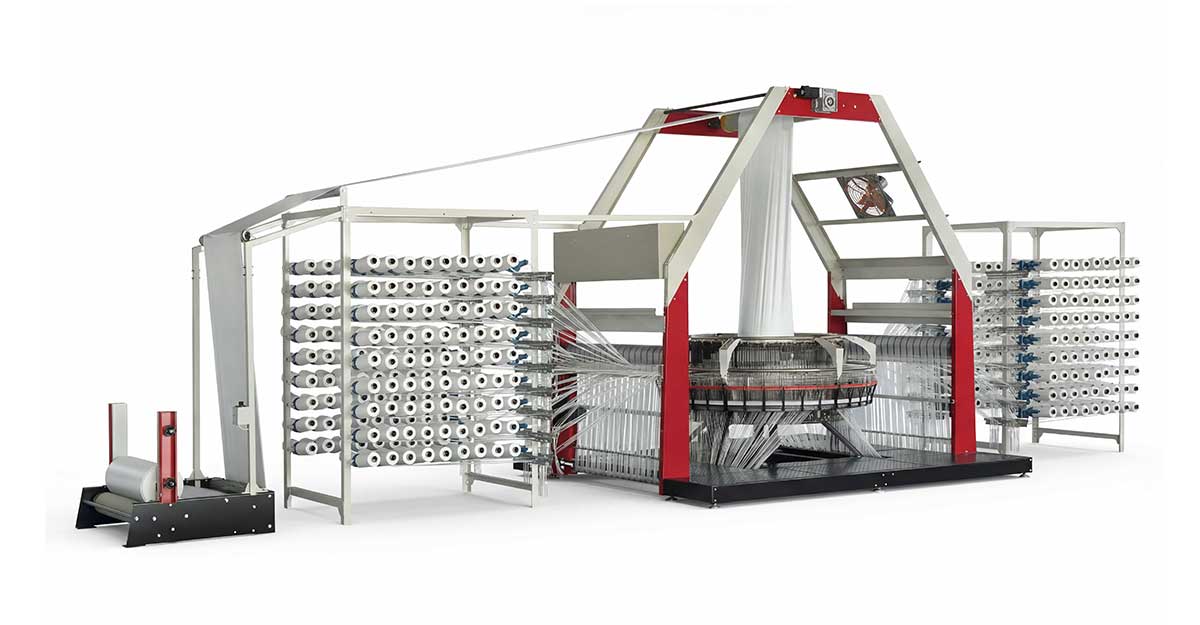

High-Speed Circular Weaving Looms
Designed to produce light to heavy tubular or flat fabrics with adjustable weave density, consistent GSM, and excellent fabric integrity for multiple industrial applications.
Extrusion Coating & Lamination Line
High-speed coating and lamination systems for PP/HDPE woven fabrics using LDPE or extrusion coating, ideal for cement, fertilizer, food-grade, and industrial packaging applications.
BCS Conversion & Finishing Line
Complete bag conversion including cutting, bottom folding, stitching, printing alignment, and stacking to produce high-quality finished woven sacks with excellent dimensional accuracy.
Key Advantages of Heaven Extrusions Raffia Lines
- Heavy-duty machine design for long service life
- High output with minimal downtime
- Energy-efficient extrusion and stretching systems
- Consistent tape and fabric quality
- Suitable for PP / HDPE / CaCO₃ / MB / UV raw materials
- Easy operation and maintenance
- Export-quality engineering standards
Applications
- Fertilizer Bags
- Cement Bags
- Sugar Bags
- Tarpaulin for Monsoon Sheds
- FIBC (Jumbo) Bags
- Food & Flour Packaging Bags
- General Purpose Packing Bags
- Chemical Packaging Bags
- Rice & Grain Packaging Bags
- Onion, Potato, Fruit & Vegetable Packaging
- Bird Feed, Bird Seeds & Animal Feed Bags
×
