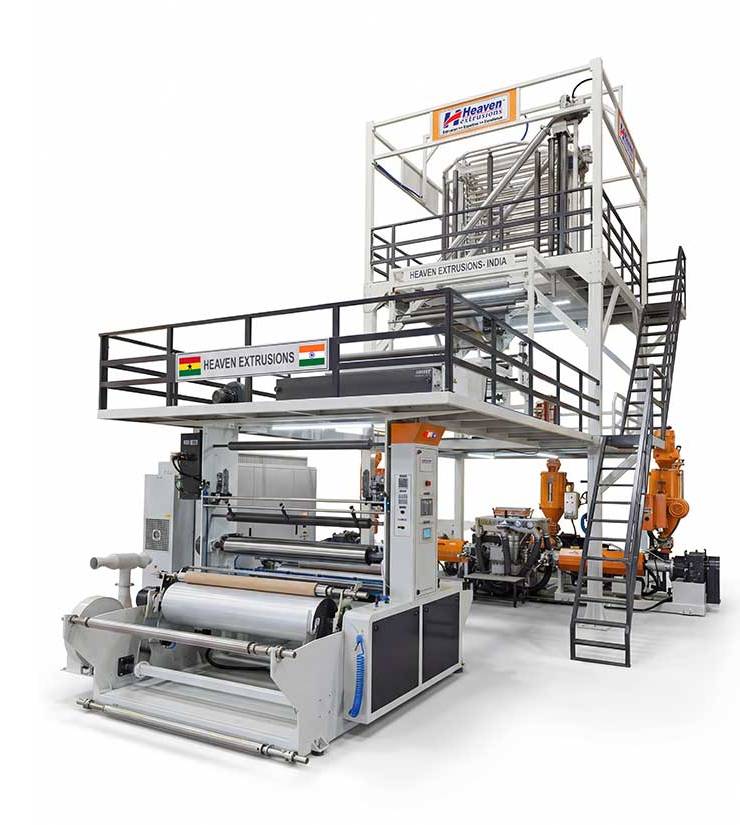

Multilayer Blown Film Extrusion Line
The Heaven Extrusions Multilayer Blown Film Extrusion Line represents the pinnacle of precision, flexibility, and high-performance extrusion technology. Designed for producing 2 to 5 Layer films, this line delivers superior barrier properties, enhanced mechanical strength, and excellent optical clarity, meeting the stringent demands of flexible packaging, laminates, FIBC, agricultural films, and industrial applications. Multilayer Blown Film Line adopts a lot of new technology such as higher Output Extrusion System, Energy Efficient screws, advance technology Spiral or Stacked dies, High Precise Air Ring Cooling system to ensures consistent gauge profile with Uniform thickness and bubble stability, IBC system, Bubble Stabilizing device, 360 Degree rotation Haul-Off unit or Rotating Die, Corona treatment Station, Centralguide system, Inline Trimming and Slitting System and Surface type Film Winding unit with Auto tension Control System. The line adopts automatic microcomputer control, equipped with colourful touch screen, integrated with HMI developed by ourselves to accomplish most of line operation, Control and achieve functions such as on-line help, Production Record, Safety protection and Start-up protection. Whether producing PE, LDPE, LLDPE, HDPE, or barrier-composite films, Heaven Extrusions' multilayer line delivers maximum flexibility, scalability, and long-term reliability, making it the first choice for premium converters and exporters.
Optional Features
Our Multilayer Blown Film Line can be configure with a wide range of optional features to suit specific production needs, improve automation, & elevate film quality. These add-ons ensure maximum flexibility for diverse applications such as packaging, lamination, shrink films, stretch films, & barrier films
1. Automation & Process Control
- Automatic Gauge Control (AGC) System – Ensures uniform film thickness across the web
- IBC (Internal Bubble Cooling) System – Improves output and bubble stability.
- Auto Air Ring with Profile Control – Enhances film consistency and reduces variation.
- Gravimetric Dosing & Blending System – Accurate material proportioning and reduced wastage.
- SCADA / Central Monitoring System – Real-time data logging and line supervision.
2. Film Quality Enhancement
- Corona or Plasma Surface Treatment – Better printability and laminate bonding.
- Electrostatic Pinning Device – Enhances layflate and improves film clarity
- Inline Gusseting Unit – For producing gusseted film in a single pass.
3. Material Handling & Utility Upgrades
- Vacuum Auto Loaders with Dryers – Efficient feeding of raw materials
- Material Storage Silos – For high-volume production setups.
- Online Flexo Printing Attachment – For inline Single Colour printing.
4. Advanced Winding Solutions
- Automatic Back to Back Two Station Winding System – Ensures perfect tension, roll density and smooth operation.
3-LAYER & 5-LAYER BLOWN FILM LINE – APPLICATIONS
1. Automation & Process Control
Food packaging films, Snacks & Namkeen packaging, Milk pouches, Oil pouches, Sugar & flour packing films, Detergent & powder packing bags
2. Industrial & Commercial Films
Shrink films, Stretch hood films, Heavy-duty bags, Courier & e-commerce packaging, Pallet cover films, Industrial liners
3. Agricultural Films
Greenhouse films (5-layer), Mulching films, Silage stretch films, Water barrier films, Fumigation films
4. Consumer & Household Films
Cling films, PE wrapping films, Garbage bags,Shopping bags
Technical Specification
| Model | HEMBL-1200 | HEMBL-1500 | HEMBL-2000 | HEMBL-2500 |
|---|---|---|---|---|
| Film Width | 600-1200 MM | 800-1500 MM | 1200-2000 MM | 1500-2500 MM |
| Film Thickness | 20-150 MICRON | 20-150 MICRON | 20-150 MICRON | 25-200 MICRON |
| Max. Melting Capacity | 140 kg/hr | 200 kg/hr | 250 kg/hr | 300 kg/hr |
| Screw Dia (MM) | 50-55-50 | 55-65-55 | 65-65-65 | 75-75-75 |
