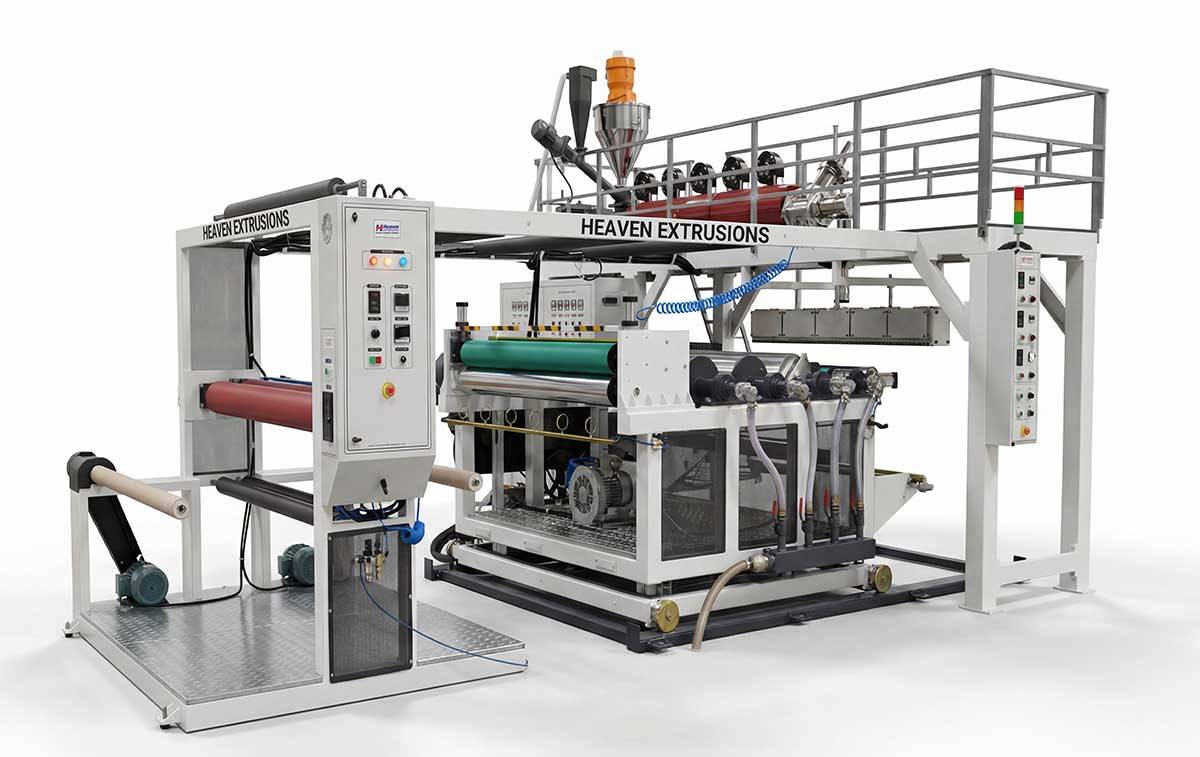

Air Bubble Film Extrusion Line
The Heaven Extrusions Air Bubble Film Extrusion Line is engineered for high-quality bubble film production used in protective packaging, cushioning, and industrial applications. Designed with advanced twinextruder systems, precision bubble dies, and stable cooling towers, the line ensures uniform bubble size, strong film strength, and excellent air retention.
This line supports single-layer & co-extrusion bubble films (A-B / A-B-A) for enhanced barrier & cushioning properties. Equipped with PLC + HMI control, automatic thickness & bubble diameter control, & high-speed winding systems, it delivers consistent quality at maximum productivity. Whether producing packaging bubble wrap, anti-static bubble film, or industrial cushioning films, this line provides robust performance, energy efficiency, & low maintenance, suitable for both domestic & export markets.
Standard Features:
- High-output extruder with energy-efficient screw
- Precision bubble die with adjustable air ring
- Bubble diameter & thickness control via PLC + HMI
- Automatic winder (center or surface)
- Automatic winder (center or surface)
- Edge trimming and recycling
Optional Features:
- Multi-layer co-extrusion (A-B / A-B-A)
- Anti-static treatment
- Corona treatment
- Jumbo roll winder & lamination-ready output
Applications:
Protective Packaging for Electrical & Electronic Appliances, Industrial Cushioning & Bubble Insulation Film, Anti-Static Bubble Film for Glassware & Ceramic Product, Jumbo Roll Bubble Film for Engineering & Automobile Product, Cushioning film for Fragile items and Crafting Material, Protect Medical & Pharmaceutical Product, E-Commerce companies and Shopping Mall Uses
Technical Specification
| Model | Screw Size(MM) | Die Width(MM) | Film Thickness Range in GSM | Max Line Speed (MPM) | Max Prod Capacity (KG/HR.) | Total Connected Load (KW) |
|---|---|---|---|---|---|---|
| HEABS/1000 | 70 | 1250 | 30 to 80 | 50 | 70 | 70 kw |
| HEABS/1200 | 80 | 1500 | 30 to 80 | 50 | 85 | 85 kw |
| HEABS/1500 | 90 | 1750 | 30 to 80 | 50 | 120 | 95 kw |
| HEABS/2000 | 100 | 2250 | 30 to 80 | 50 | 160 | 100 kw |
