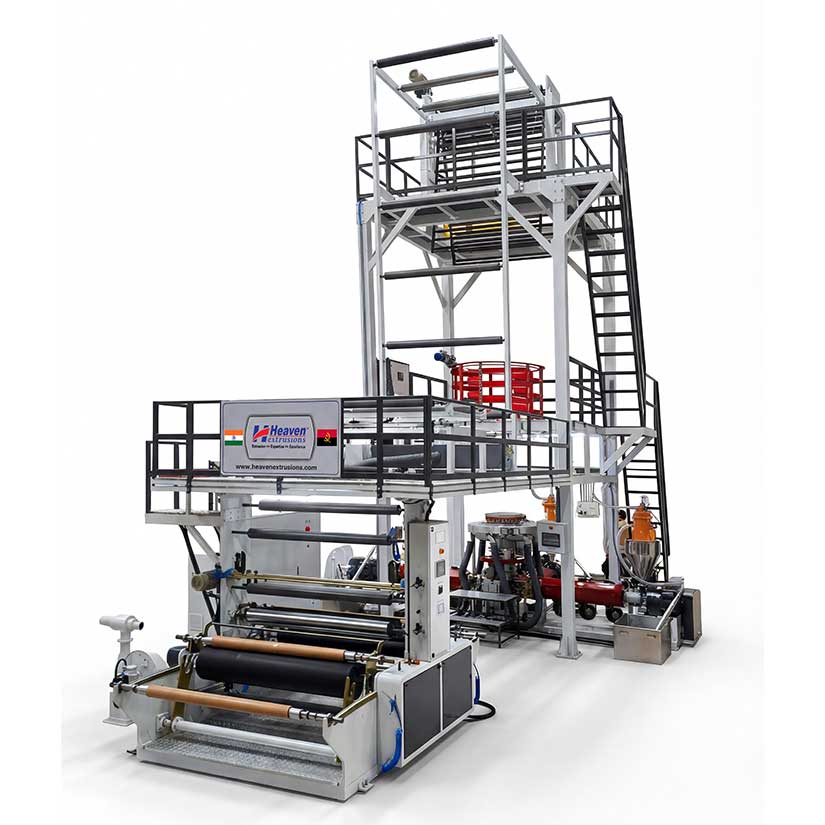

ABA Co-Extrusion Blown Film Extrusion Line
The Heaven Extrusions ABA Co-Extrusion Blown Film Machine is designed for producing premium 3-layer films (ABA configuration), combining high strength, superior barrier properties, and excellent optical clarity. It is ideal for flexible packaging, lamination, FIBC, and high-performance films.
A-B-A Co-Ex Blown Film Line adopts a lot of new technology such as higher Output Extrusion System, Energy Efficient screws, advance technology Spiral dies, High Precise Air Ring Cooling system to ensures consistent gauge profile with Uniform thickness and bubble stability, Bubble Stabilizing device, 360 Degree rotation Haul-Off unit or Rotating Die, Corona treatment Station, Central-guide system, Inline Trimming and Slitting System and Surface type Film Winding unit with Auto tension Control System. The line adopts automatic microcomputer control, equipped with colourful touch screen, integrated with HMI developed by ourselves to accomplish most of line operation, Control and achieve functions such as online help, Production Record, Safety protection and Start-up protection.
With ABA co-extrusion, users can achieve outer layers for printability and strength, and a core layer optimized for barrier or mechanical properties, offering enhanced versatility for converters and manufacturers.
Optional Features
- Enhance Performance
- Improve Film Quality
- Maximize Productivity
Our Multilayer Blown Film Line can be configure with a wide range of optional features to suit specific production needs, improve automation, & elevate film quality. These add-ons ensure maximum flexibility for diverse applications such as packaging, lamination, shrink films, stretch films, and barrier films
1. Automation & Process Control
- Automatic Gauge Control (AGC) System – Ensures uniform film thickness across the web.
- Gravimetric Dosing & Blending System – Accurate material proportioning and reduced wastage.
2. Film Quality Enhancement
- Corona or Plasma Surface Treatment – Better printability and laminate bonding.
- Electrostatic Pinning Device – Enhances layflate and improves film clarity.
- Inline Gusseting Unit – For producing gusseted film in a single pass
3. Material Handling & Utility Upgrades
- Vacuum Auto Loaders with Dryers – Efficient feeding of raw materials
- Online Flexo Printing Attachment – For inline Single Colour printing.
4. Advanced Winding Solutions
- Automatic Back to Back Two Station Winding System – Ensures perfect tension, roll density and smooth operation.
ABA Blown Film Line – Applications
1. Automation & Process Control
- Grocery bags
- Shopping bags
- Carry bags with high dart impact
- T-shirt bags
- Garbage bags / trash liners
- Courier bags
- E-commerce packaging films
2. Cost-Effective Multi-Use Films
- Outer layer high-strength HDPE/LLDPE for toughness
- Inner core layer of recycled/mediumgrade polymer for cost reduction
- Ideal for thin-gauge, high-strength films
3. Food & Consumer Packaging
- Milk pouches (economy grade)
- Bread bags
- Dry food packaging liners
- Frozen food liners (non-critical)
4. Agricultural Films
- Nursery bags
- Seedling bags
- General-purpose utility films
Technical Specification
| Model | HEABABL-900 | HEABABL-1200 | HEABABL-1500 | HEABABL-2000 |
|---|---|---|---|---|
| Lay Flat Width | 400 - 900 MM | 600- 1200 MM | 800 - 1500 MM | 1200 - 2000 mm |
| Film Thickness | 20 -80 MICRON | 20-100 MICRON | 20-150 MICRON | 25-150 MICRON |
| Max. Melting Capacity | 75 kg/hr | 120 kg/hr | 200 kg/hr | 250 kg/hr |
| Screw Dia (MM) | 45-45 (HM-LD) | 55-55 (HM-LD | 65-65 (LD-LL) | 75-75 (LD-LL) |
