Cast Embossed Film Extrusion Line
High-Quality Embossed Film Manufacturing Solution

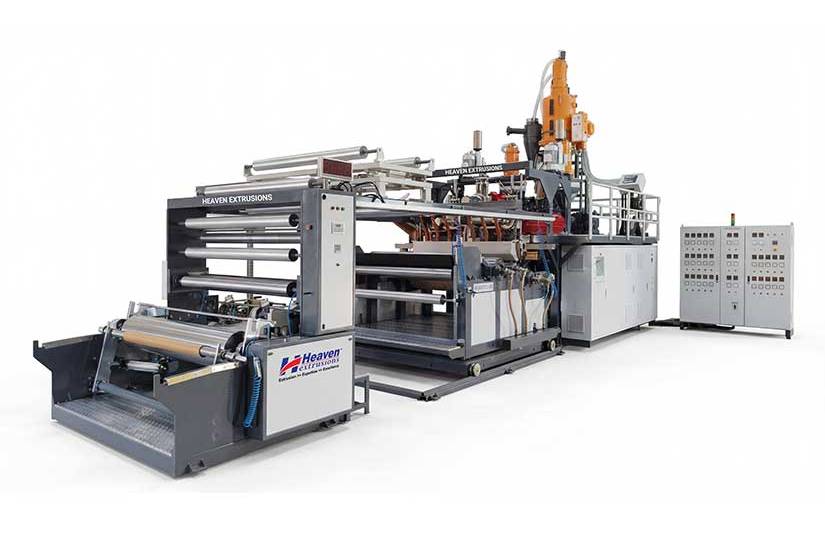

The Cast Embossed Film Extrusion Line from Heaven Extrusions is engineered to deliver premium embossed films with exceptional clarity, softness, and surface texture. Designed for high-volume production, the line combines advanced casting technology with precise embossing to produce films ideal for hygiene, medical, agriculture, and industrial applications.
Product Highlights
- High-Output Extruder ensuring consistent melt quality for PE, PP, EVA & specialty polymers.
- Precision T-Die for flawless film thickness and superior optical properties.
- Efficient Chill Roll System for immediate cooling and smooth film formation.
- Advanced Embossing Station offering sharp, uniform micro/macro embossed patterns.
- Servo-Based Winding System for perfect roll formation and 24/7 high-speed stability.
- Intelligent PLC Control with real-time monitoring and recipe management
Key Features
Robust construction for vibration-free operation, Auto edge guiding for accurate film alignment, Loadcell–based tension control for consistent winding, Turret or single-station winder options, Fast changeover and simple operation, Energy-efficient heating and cooling system
Applications
Our Cast Embossed Film Line is ideal for producing: Baby diaper PE back sheet film, Medical drape & surgical film, Mattress protector & hygiene film, Automotive industries film & Rubber Release film, Protection, cover & industrial embossed film
Technical Specification
| Model | Screw Size(MM) | Die Width(MM) | Film Thickness Range (GSM) | Max Line Speed (MPM) | Max. Melting Capacity (KG/HR.) | Total Connected Load (KW) |
|---|---|---|---|---|---|---|
| HSCFL/1000 | 75 | 1250 | 40 to 150 | 100 | 120 | 85 kw |
| HSCFL/1500 | 90 | 1750 | 40 to 150 | 100 | 180 | 120 kw |
| HSCFL/2000 | 80 | 2250 | 40 to 150 | 100 | 300 | 180 kw |
