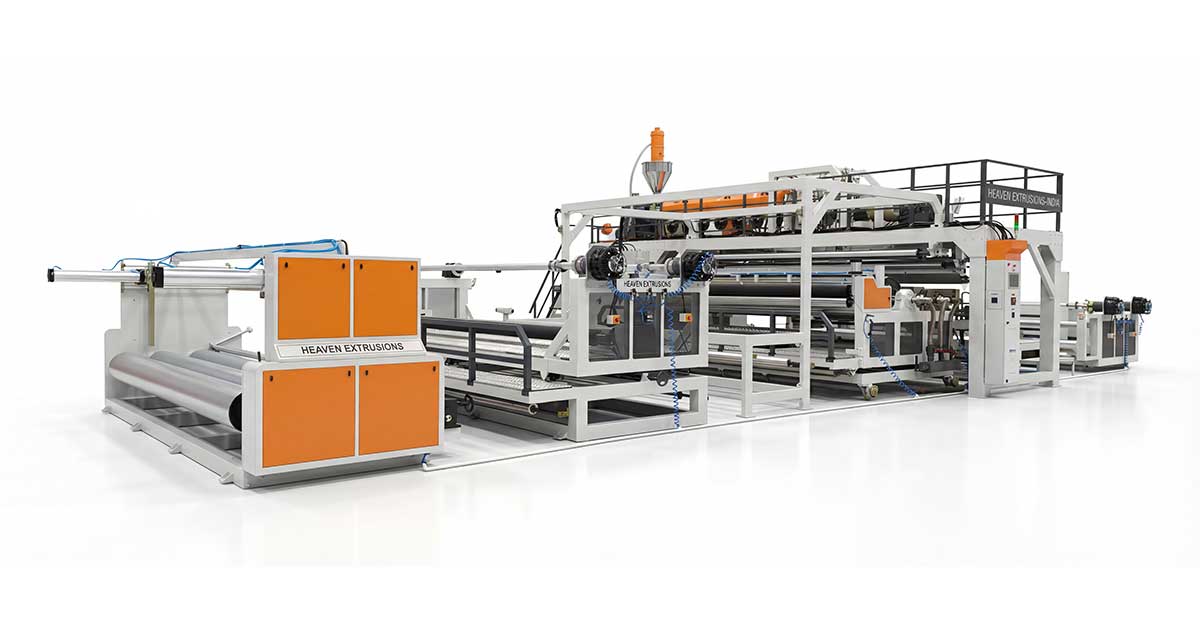

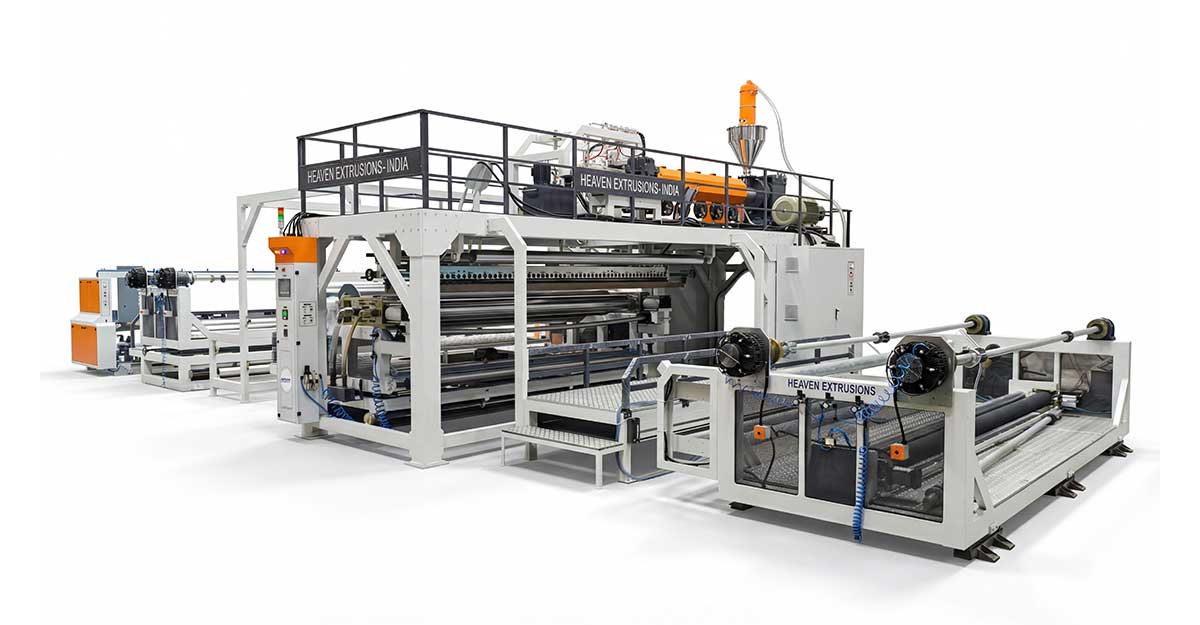

Extrusion Coating Tarpaulin Lamination Line
The Extrusion Coating Tarpaulin Lamination Line from Heaven Extrusions is engineered for manufacturing premium-quality laminated tarpaulins used in agriculture, construction, logistics, transportation, and industrial covering applications. The line combines robust mechanical design with advanced extrusion coating technology to deliver uniform coating, excellent adhesion, and long service life of finished tarpaulin fabric.
Designed for continuous operation and high output, this line ensures superior bonding of LDPE/HDPE/LLDPE coating onto woven HDPE or PP fabric, resulting in tarpaulins with high tensile strength, water resistance, UV stability, and tear resistance.
Key Features
- Heavy-duty single or twin-screw extruder for stable melt flow
- Precision T-die with uniform coating thickness control
- Advanced corona treatment system for strong fabric-to-polymer adhesion
- Effcient lamination nip & cooling drum system
- Smooth edge trimming and scrap recycling option
- Automatic tension control & winding system
Raw Materials
- Base fabric: HDPE / PP Woven Fabric
- Coating polymers: LDPE, LLDPE, HDPE
- Additives: UV stabilizers, colour Masterbatch,Anti-aging agents
Advantages
- Excellent coating adhesion & peel strength
- Uniform GSM coating across full width
- High productivity with consistent quality
- Reduced energy consumption
- Long machine life with minimal maintenance
- Suitable for domestic and export markets
Technical Specification
| Model | Screw Size (MM) | Die Width (MM) | Max. Coating Width (MM) | Coating Thickness (Micron) | Line Speed (MPM) | Max. Melting Capacity (KG/Hr) | Connected Load (KW) |
|---|---|---|---|---|---|---|---|
| HETDL/950 | 70 × 70 | 900 | 800 | 20 – 75 | 150 | 150 | 95 |
| HEL/1200 | 70 | 1200 | 1050 | 20 – 75 | 120 | 100 | 62 |
| HEL/1650 | 75 | 1650 | 1500 | 20 – 75 | 120 | 150 | 78 |
| HEL/2200 | 90 | 2200 | 2000 | 20 – 75 | 100 | 180 | 86 |
| HEL/2600 | 90 | 2650 | 2500 | 20 – 75 | 80 | 200 | 105 |
| HEL/3250 | 100 | 3330 | 3100 | 20 – 75 | 60 | 220 | 125 |
| HEL/3860 | 100 | 3800 | 3650 | 20 – 75 | 50 | 350 | 135 |
| HEL/4300 | 110 | 4300 | 4150 | 20 – 75 | 40 | 450 | 165 |
| HEL/5300 | 120 | 5300 | 5100 | 20 – 75 | 40 | 550 | 185 |
Applications
- Agriculture tarpaulins
- Truck & container covers
- Construction site covers
- Monsoon & all-weather protective sheets
- Pond lining & canal lining sheets
- Industrial and warehouse covers
×
